Why SAWI Uses SORR Gyroid

SORR Gyroid™ Material EPA-Safe Technical Description for Environmental Deployment

This SORR Gyroid™ Material

EPA-Safe Technical Description for Environmental Deployment describes the Trade-Secret Protected characteristics of the GYROID MATERIAL for Non-Confidential Disclosure.


READ MORE

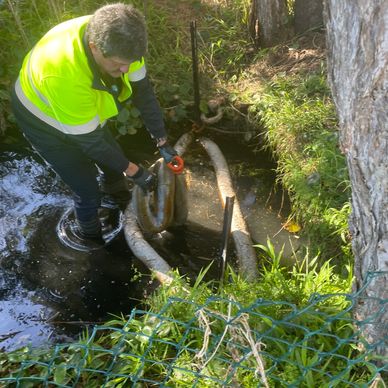

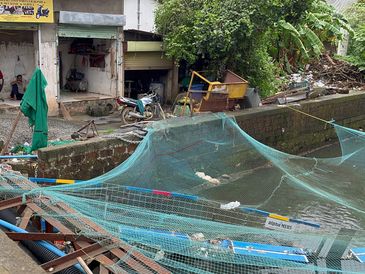

Stormwater Pollution Interception

SAWI uses the SORR Gyroid to intercept pollutants at the point of discharge, preventing hydrocarbons, microplastics, nutrients, and algal biomass from entering South Australia’s waterways and coastal environments.

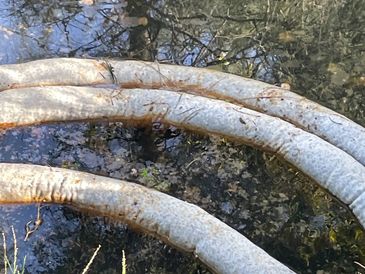

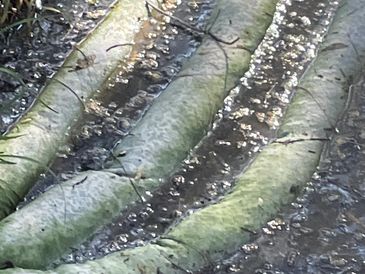

Nearshore Protection

The Gyroid system acts as a passive filtration barrier in nearshore zones, reducing the pollutant load that fuels harmful algal blooms and improving water quality at beaches, estuaries, and marine habitats.

Evidence-Based Performance

Non-Chemical, Non-Invasive Solution

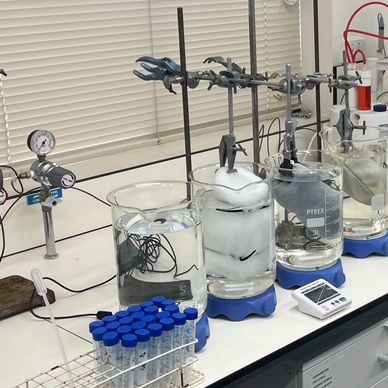

Independent testing by SARDI has shown the Gyroid removes over 96% of suspended particulates, including fine organic material that contributes to HAB formation. Field deployments, such as the Long Jetty study, confirm capture of hydrocarbons, PFAS, and heavy metals.

Non-Chemical, Non-Invasive Solution

Non-Chemical, Non-Invasive Solution

Non-Chemical, Non-Invasive Solution

The Gyroid operates without chemicals, pumps, or power. It does not alter water chemistry and can be installed within existing stormwater assets, providing a low-impact, highly effective method of improving stormwater quality.

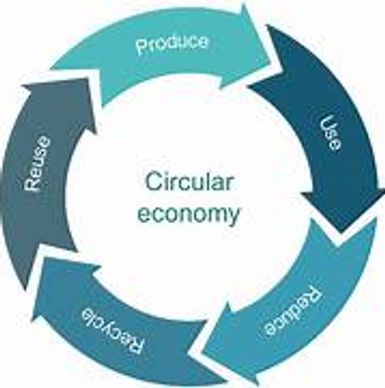

Circular Economy and Zero Waste

Non-Chemical, Non-Invasive Solution

Non-Chemical, Non-Invasive Solution

All captured pollutants are stabilised within the Gyroid material, which is then fully recycled into new, usable products—ensuring zero landfill and zero incineration and aligning with SAWI’s commitment to sustainable resource management.

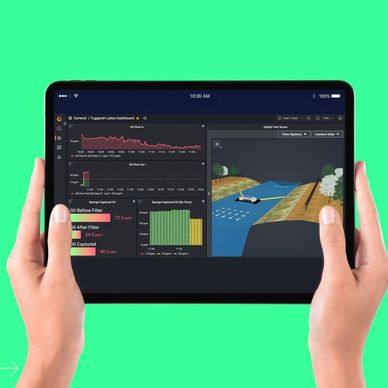

Diagnostic Waterway Insights

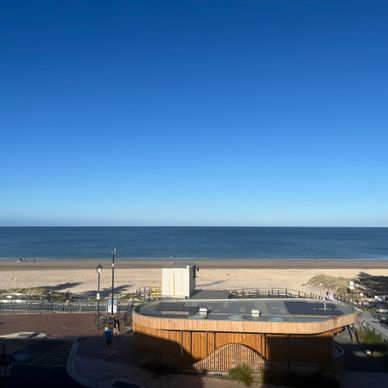

Coastal Resilience and Public Health

Coastal Resilience and Public Health

By analysing the material after deployment, SAWI gains detailed insight into pollutant profiles, sources, and catchment behaviour, enabling councils and agencies to make informed decisions and secure future funding for preventative infrastructure.

Coastal Resilience and Public Health

Coastal Resilience and Public Health

Coastal Resilience and Public Health

Reducing stormwater-borne pollutants lowers the risk of harmful algal blooms, improves beach safety, protects marine life, and strengthens South Australia’s long-term resilience to environmental stressors.

Discussion and White papers

SA Water Innovation Desalination & HAB

South Australia’s coastal waters continue to experience pressure from harmful algal blooms (HABs), with impacts on ecosystem health, fisheries, tourism, public amenity and community confidence. Scientific consensus recognises that HABs arise from multiple interacting drivers, including nutrient enrichment (nitrogen and phosphorus), dissolved organic matter, fine particulates, physical stratification and climate-driven changes in hydrodynamics.

Desalination infrastructure is essential to South Australia’s long-term water security and is not identified as a primary cause of HABs. However, desalination discharge interfaces represent fixed, engineered points within the marine environment where controlled, reversible interception and filtration can be trialled under existing regulatory oversight.

This paper proposes a small, independently governed proof-of-concept (PoC) to test whether passive interception and filtration systems, deployed at or downstream of desalination discharge interfaces, can achieve measurable reductions in particle-associated nutrients, organic matter and other bloom-catalysing materials under South Australian operating conditions.

READ NOW

Mitigating Harmful Algal Bloom (HAB) Impacts in Australian Marine Systems

In southern Australian waters, harmful algal blooms rarely arise from a single cause. In practice, they tend to emerge when nutrient availability coincides with warm conditions, water-column stratification, and long residence times — a combination that is particularly common in semi-enclosed systems such as Gulf St Vincent and Spencer Gulf (Anderson et al., 2012; Roberts et al., 2019; Kämpf, 2026).

This paper brings together peer-reviewed science, regulator guidance, and operational experience to explore whether SORR Gyroid interception structures could play a limited but useful role during active HAB events. Specifically, we consider whether physically intercepting particulate, organic, and toxin-associated fractions — including foams, scums, cell fragments, and organic flocs — could reduce exposure and secondary impacts in aquaculture and near-field environments.

It is important to be clear about what is, and is not, being proposed. The Gyroid system is not a nutrient treatment technology, and it is not expected to prevent blooms from forming. Instead, it is discussed here as a mitigation and exposure-reduction measure, intended to complement existing regulatory controls, feed optimisation, fallowing practices, and catchment nutrient management (EPA Tasmania, 2023; Ross et al., 2025).

READ NOW

SORR Gyroid Towed Booms for Surface Algal-Bloom Scum and Foam Capture

Targeted Physical Interception of Harmful Algal Blooms Using SORR Gyroid Boom - Yorke Peninsula

This paper proposes a low-risk, reversible pilot to test towed surface interception booms that incorporate SORR Gyroid capture media to collect surface algal scum and foam during favourable windows in Spencer Gulf (near-shore and open water), with a transferable pathway for Gulf St Vincent.

The concept is grounded in international oil spill containment and recovery practice—the closest marine engineering analogue for buoyant surface layers—using conservative rules on relative flow limits, tow speeds, draft/freeboard proportioning, and deployment geometries (J-tow and U/V sweep) [3,5,7,9]. The key control rule is that retention deteriorates when the component of relative flow normal to the boom approaches approximately 0.7–1.0 knots due to headwave formation and entrainment/underflow losses [3,4,5,9].

READ MORE

Targeted Physical Interception of Harmful Algal Blooms Using SORR Gyroid Boom - Yorke Peninsula

Targeted Physical Interception of Harmful Algal Blooms Using SORR Gyroid Boom - Yorke Peninsula

This document is presented as a Discussion Paper and Proof of Concept (PoC) Proposal for the Government of South Australia, EPA SA, SARDI and relevant stakeholders to consider a targeted, science-led pilot deployment of SORR Gyroid Boom systems for the physical interception and removal of harmful algal bloom (HAB) biomass, surface foams and associated toxins.

The proposal is not for immediate large-scale rollout.
It is for structured, controlled evaluation of a practical, low-risk engineering intervention at a priority site: Yorke Peninsula.

READ MORE

Low-Energy Remediation Advantages of SORR’s Gyroid Sponge™ Over High-Flow GAC & Resin Systems - PFAS

The former Port Stanvac Refinery, operational from 1963 to 2003, has a complex legacy of contaminants including petroleum hydrocarbons, specialist chemicals and solvents, PFAS compounds, and heavy metals such as lead. These pollutants have impacted soil, groundwater, and nearby marine environments, creating ongoing environmental management challenges for the site.

SORR’s Approach

SORR Innovations Pty Ltd delivers innovative, Environmentally Sustainable Circular Economy (ESCE) solutions for pollution control and remediation. Our technologies and processes focus on:

  • Clean water, valuable waste,
  • Zero landfill outcomes

These solutions are perfectly suited to legacy industrial sites like Port Stanvac.

READ MORE

A Prevention-First Stormwater Interception Pilot for Sydney Harbour

Heavy rainfall events in Sydney continue to deliver large volumes of untreated stormwater directly into Sydney Harbour. These inflows carry sediments, nutrients, organic matter, microplastics and hydrocarbons, degrading water quality and increasing ecological and public-safety risks immediately following rain events.


This white paper proposes a prevention-first stormwater interception pilot using SA

Water Innovation (SAWI) and SORR Micro & Nano Filtration Units to intercept and filter

stormwater before it enters the harbour .

READ NOW

Prevention-First Protection of Oyster Leases and Sensitive Marine Habitats De

Oyster leases and other sensitive marine habitats are increasingly exposed to short-duration but high-impact water-quality events, including stormwater runoff, sewage spills, harmful algal blooms (HABs), nutrient pulses and suspended particulate loads. These episodic events can trigger precautionary harvest closures, ecological stress and market-access impacts, even where long-term baseline water quality remains within regulatory limits.

This white paper presents a prevention-first, reversible protection approach using SORR

Gyroid surface booms and subsurface curtains to intercept contaminant loads before

they enter oyster growing areas and sensitive marine habitats .

READ NOW

Low-Energy Remediation: The Advantages of SORR’s Gyroid Sponge™ for PFAS and Microplastic Capture

PFAS and micro/nanoplastics are among the most difficult environmental pollutants to remove from

waterways. Traditional remediation approaches—such as high-flow pump-and-treat systems using

granular activated carbon (GAC) or synthetic resins—are effective but come at a high cost: they are

energy-intensive, infrastructure-dependent, and generate non-recyclable waste.

READ NOW

Stormwater Pollution & Hydrogen Sulphide (H₂S): Why It Forms

How SAWI’s Gyroid System Helps Prevent It

Hydrogen sulphide (H₂S) is a toxic gas produced when organic material decomposes in low-oxygen environments. Stormwater systems with heavy pollutant loads, trapped sediments, algal die-off and tidal backflow provide ideal conditions for sulphide generation. Although H₂S itself is gaseous and not the direct target of SAWI’s technology, it is a symptom of deeper pollution issues that SAWI’s passive gyroid-based filtration helps prevent.


Where H₂S Problems Commonly Occur

Across Australia, H₂S is most frequently associated with coastal stormwater networks where organic-rich stormwater meets tidal or stagnant water. This includes:

  • Adelaide metropolitan outlets (Glenelg, West Lakes, Port Noarlunga, Moana, Christies Creek)
  • Sydney coastal outlets and river-fed stormwater systems
  • Brisbane / Moreton Bay, Gold Coast, Townsville
  • Perth coastal plain and estuarine drains
  • Port Phillip Bay and Yarra/Maribyrnong tidal drains

These locations share the same drivers:
organic particulates + nutrients + algal biomass + low oxygen = sulphide formation risk


What the SORR Gyroid Actually Does

SAWI’s stormwater interception system is a non-chemical, non-invasive, fully circular filtration material engineered to remove:

  • organic particulates
  • hydrocarbons
  • nutrient-bearing fine sediments
  • algal biomass
  • heavy metals (particle-bound)
  • PFAS (particle-associated fractions)

Independent laboratory and field data confirm these capabilities.


Verified Field Data: What the Gyroid Captures

SAWI’s approach is grounded in evidence. The Central Coast Council LJ19 Stormwater Study provides one of the most detailed datasets of its kind.


1. Hydrocarbons Removed

GC–MS analysis of the recovered sponge from LJ19 showed strong signatures of diesel-range hydrocarbons, including:

  • Octadecane, 3-ethyl-5-(2-ethylbutyl) — 129.66 g/kg captured
    Central Coast Council LJ19 Repo…
  • Heptadecyne, 1-chloro- — 88.49 g/kg
    Central Coast Council LJ19 Repo…

These compounds are consistent with diesel fuel and additives.
Field OIW sensors also measured stormwater hydrocarbon spikes between 60–220 ppm, with filtered outflow down to 11.9 ppm.
Central Coast Council LJ19 Repo…


2. PFAS Retention

Microanalysis results confirmed:

  • 2.93 g/kg of PFAS retained by the gyroid sponge
    Central Coast Council LJ19 Repo…

Even though the material was originally optimised for hydrocarbons, it still removed measurable PFAS loads—evidence of broad-spectrum particulate capture.


3. Heavy Metals Captured

The gyroid retained significant levels of:

  • Zinc, Antimony, Manganese
    Central Coast Council LJ19 Repo…

These metals contribute to sediment oxygen depletion and H₂S-producing microbial conditions.


4. Organic Acids, Oils and Algal Residues

Analyses also detected:

  • Fatty alcohols and methyl esters
  • Triglycerides
  • Plant oils
    Central Coast Council LJ19 Repo…

These are exactly the materials that break down anaerobically and generate sulphides.


How This Relates to Hydrogen Sulphide (H₂S)

The gyroid does not chemically adsorb H₂S.

However, the LJ19 data shows it captures the precursors that produce H₂S:

A. Removal of Organic Material

The captured list includes fatty acids, triglycerides, natural oils and hydrocarbon residues — all of which decompose into sulphides in low-oxygen settings.

B. Capture of Algal Biomass

Algae contribute to sulphate-reducing bacterial activity when they decompose. The gyroid removes this biomass before it settles into sediment.

C. Removal of Petroleum Hydrocarbons

Diesel-range hydrocarbons captured at over 129 g/kg (single compound) dramatically reduce oxygen-consuming breakdown reactions.

D. Reduction of Metal Catalysts

Metals such as manganese and zinc support redox cycling that accelerates oxygen depletion and sulphide production.

Conclusion:
By removing the inputs that create anaerobic, sulphide-producing environments, the gyroid materially reduces the environmental conditions that generate H₂S.


Why SAWI’s System Is Environmentally Superior

1. No chemicals introduced

The system uses a passive, inert material.
(No surfactants, no reagents, no additives.)

2. Zero landfill, zero incineration

Captured pollutants are stabilised and converted into usable building materials via circular processing.
Central Coast Council LJ19 Repo…

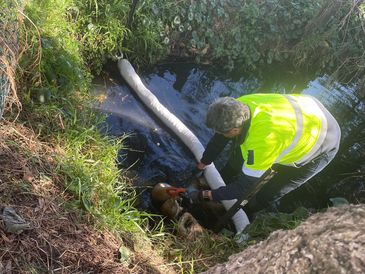

3. Non-invasive installation

The material is deployed in stormwater outlets without excavation or infrastructure disruption.

4. Verified by independent laboratories

  • University of Newcastle GCER Laboratory
  • Microanalysis Australia (WA)
  • AWS digital sensor calibration


How SAWI’s Approach Helps Councils

SAWI provides councils with:

  • validated pollutant removal data
  • diagnostic insight into pollutant profiles and sources
  • evidence needed for SMA Category A & C funding applications
  • preventative interventions that reduce future algal blooms and H₂S hotspots
  • a fully circular, zero-waste compliant solution aligned with SDGs

Frequently Asked Questions

Each FAQ response is underpinned by independent laboratory reports confirming performance and results.

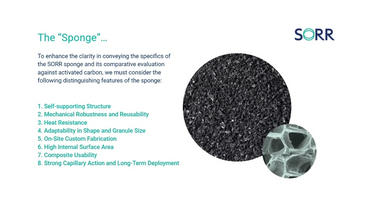

 The SORR Gyroid Sponge™ is an engineered 3D-structured polymer media designed for high-efficiency water remediation, targeting suspended solids, dissolved contaminants, PFAS, microplastics and hydrocarbons. Its gyroid geometry maximises surface area and flow pathways while reducing energy consumption compared to traditional media.

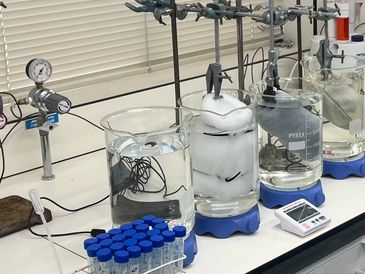

 The SARDI Lab experiments demonstrated statistically significant capture of targeted contaminants, with the Gyroid Sponge™ effectively reducing dissolved pollutants and suspended solids in controlled bench-scale trials. Results confirmed high adsorption capacity and rapid throughput, validating its design for both macro and micro pollutant capture.


 In the second SARDI Trial, the Gyroid Sponge™ consistently outperformed control media in retention of target analytes and showed sustained permeability over repeated cycles, indicating durability and potential for regeneration. This provides strong evidence for its application in long-term treatment trains.


 Yes. Following SARDI, independent validation at accredited microanalysis laboratories confirmed the Gyroid Sponge's pollutant reduction performance, including PFAS and microplastic binding efficiencies comparable to or exceeding traditional adsorption media. .


 Deployments include industrial water systems in New South Wales, pilot installations in South Australia, and targeted remediation systems across Victoria and Queensland. Each site has demonstrated improved water quality metrics consistent with laboratory results.


 Yes. Both laboratory and field data show the Gyroid Sponge™ effectively captures a broad range of PFAS species when configured in staged contactor modules. Performance is competitive with high-flow granular activated carbon (GAC) but at lower energy and pressure drops.




Key use cases include:

  • Industrial wastewater treatment

  • Stormwater quality improvement

  • PFAS mitigation

  • Microplastics capture

  • Hydrocarbon and oil removal

  • Pre-/post-treatment polishing in municipal and industrial systems




Compared with high-flow GAC systems, the Gyroid Sponge™ delivers similar or better contaminant capture with:

  • Lower backpressure

  • Reduced pumping energy

  • Simplified maintenance

  • Modular scalability







Yes. Its modular design enables retrofit integration into existing clarifiers, filters, and PFAS trains, often without major civil works.


 At end of life, the SORR Gyroid Sponge™ is collected and transferred into SORR’s circular recovery pathway in partnership with Circular Seed, where the polymer media is processed, cleaned and mechanically recycled into new functional products rather than sent to landfill.


 For PFAS-impacted media, SORR integrates the Gyroid Sponge™ into advanced destruction pathways, including non-incineration technologies aligned with emerging thermal and chemical destruction (TCD) methods, ensuring PFAS is destroyed rather than transferred to landfill.


 Field installations regularly report >90% suspended solids reduction, with influent turbidity drops consistent with laboratory scaling expectations.
